On Board Sprayer Range OBS60
For similar products see OBS135 range/TS400 range. For serious weed control in grassland see CTF250 Contact 2000 range.

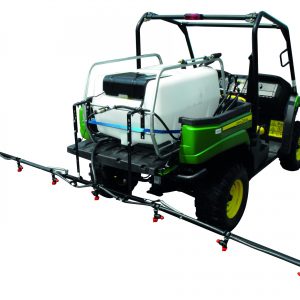

The Logic 60litre on-board sprayer range has been designed to fit onto the rear carrier rack of an ATV.
Each nozzle requires an output of between 1.0 and 1.6 litres per minute at a sprayng pressure of between 2 and 3 bars.
The 60 litre tank has two pump options which allow you to utilise the following booms:
OBS640S model – 4.5 litre per minute pump @ 3 bar – boom options OBS101 1.5metre boom/3 nozzles or OBS102 2.0m boom/4 nozzles
OBS690S model – 9.0 litre per minute pump @ 3 bar – boom options as above, plus OBS104 3.0metre/6 nozzles
Please note, all Logic booms come with one end hedgerow nozzle as standard. A handlance with up to 15metres of hose is available fitted on a hose reel or on a wrap around bracket. A 60 litre front tank can be added to either of the above models.
Speak to a Logic dealer or see our retail price list for all options.
All Farm Applications
Whether it’s spraying arable headlands, spot control in grassland or around buildings and sheds there will always be a use for an on-board sprayer on a farm.
A rotational moulded tank and a high quality pump designed for use with chemical are at the heart of a good, reliable spraying system. Fitting of the tank is very quick and straightforward, using the ‘T’ bolts supplied. The unit also comes with a complete wiring harness with in line fuse. All booms are height adjustable and have a break-back facility. All nozzles can be individually swithched on and off. The hedgerow nozzle is very useful for spraying electric fencelines and the bottom of the hedgerow/wall.
